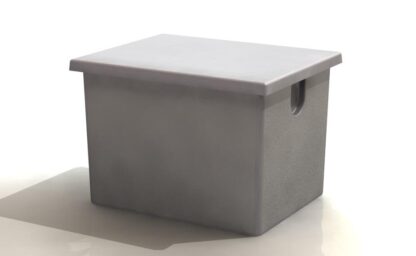

136 Litres Nominal Capacity GRP One Piece Insulated Cold Water Break Tank
Break Tank Manufactured to BS EN 13280, made from WRAS Approved Materials (also to Byelaw 30)
Internal Dimensions (L x W x H): 610 x 458 x 484mm
External Dimensions (L x W x H): 710 x 558 x 509mm
Made from Glass Reinforced Plastic with a Gelcoat internal surface to prevent bacterial growth and importantly helps to keep the water as clean and fresh as possible.
Litres are Nominal Capacity (to the Brim of the Tank)
Tank Requires a Flat Fully Supported Base for the tank to sit on, this base should be as flat as possible as to not distort the tank once positioned on the base.
There is a slight Taper on the Height of the tank of approximately 20mm, therefore the top of the tank is 20mm wider than at the base.
There is a 25mm radius at the edge of each wall of the tank and also onto base.
A Usual Lead time for the tank is shown on this product, please check with us as this lead time can increase at busy times.
