Inlets Ballvalves and Float Valves

Range Of Inlet Valves

There are a number of types of Inlet valves on the market, from standard plastic ballvalves and float valves to electronic solenoid valves, each with its own specific qualities.

We supply a range of inlets that we believe are some of the best on the market.

Range of Inlets

Brass Equilibrium Ball Float Valves
Stainless Steel Ball Float Valves
Aylesbury Brass K TYPE Float Valves

Aylesbury Brass KAX TYPE Float Valves
Aylesbury Brass KB TYPE Float Valves
Aylesbury Brass KP TYPE Float Valves
Closed Solenoid Valves

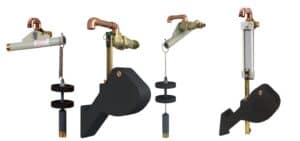

Aylesbury Delayed Action Brass Float Valves

Unique Float Design and operation that give the valves a delay in operating allowing the water level to drop a certain amount before the valve starts to refill. 1-10 Bar Pressure.

These valves are approved by WRAS. Manufactured in brass (Also available in stainless steel for K Type Valves) and incorporating ceramic discs and a puncture proof float, enables them to far outperform conventional ball float valves. Suitable for mains pressure upto 10 bar and temperatures of water upto 60 Deg C, The delayed action results in full on flow when demanded and positive shut-off when desired water level is reached.

Aylesbury Delayed Action Float Valve

Ebco Brass Equilibrium Ball Float Valve

Range of Full bore equilibrium Ball valves with Copper Floats and optional adjustable Drop arm (ideal for Type AB Air Gap Tanks). 1-5 Bar Pressure. 60 Degrees C Max

Manufactured in Brass with supplied with a Copper float suitable for mains pressure upto 5 bar and water temperatures upto 60 deg C,

Additional adjustable drop arms to enable the valve to be fitted in a raised ball valve housings and can be used in conjunction with Screened Spillover Weirs to provide CAT 5, Type AB airgaps where required.

WRAS APPROVED

Solid Brass with BSP Threaded connector or PN16 Flanged connector, Copper float and Brass Drop arm.

Valve sizes: ½”, ¾”, 1″, 1¼”, 1½”, 2″, 2½”, 3″, 4″

Ebco Brass Equilibrium Ball Float Valve
EBCO Brass Equilibrium Ball Float Valve

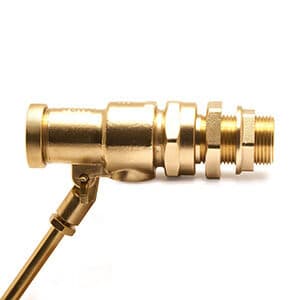

Peglar Brass Equilibrium Ball Float Valve

Range of equilibrium Ball valves with Copper Floats and optional adjustable Drop arm. 1-10 Bar Pressure. 85 Degrees C Max

Manufactured in Brass/Bronze with a Copper float suitable for mains pressure upto 10 bar and water temperatures upto 85 deg C, ideal for F&E Tanks and Hot Water Applications,

Available with options for an adjustable drop arms and adapter that enables the valve to be fitted in a raised ball valve housings  and adjusted to reach teh required water level, can also be used with Screened Spillover Weirs to provide CAT 5, Type AB airgap Backflow Prevention where required.

WRAS APPROVED

Solid Brass/Bronze with BSP Threaded connector, Copper float and Brass Drop arm.

Valve sizes: ½”, ¾”, 1″, 1¼”, 1½”, 2″, 2½”, 3″, 4″, 6″

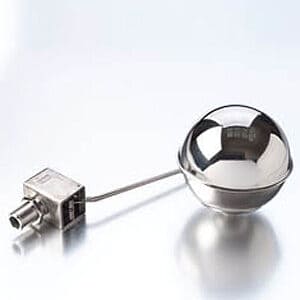

Stainless Steel Ball Float Valve

Range of Stainless Steel Ball valves with Stainless Steel Floats.

1-10 Bar Pressure. 150 Degrees C Max

Manufactured in 316 Stainless Steel suitable for pressure up to 10 bar and water temperatures up to 150 deg C.

316 Stainless Steel with BSP Threaded connector or Flanged Connector and Stainless Steel float.

Valve sizes: ½”, ¾”, 1″, 1¼”, 1½”,  2″, 2½”

Stainless Steel Ball Float Valve
